Disk image formats

Disk Decipher supports these disk image formats:

If you use another disk image format and would like Disk Decipher to support that, please let me know.

VeraCrypt

From version 2.2.0, Disk Decipher supports VeraCrypt containers created by VeraCrypt 1.0 and later (header version 5). Almost all VeraCrypt features are supported:

  • Operating mode: XTS
  • Ciphers: AES-256, Serpent, Twofish, Kuznyechik, Camellia
  • Cascade ciphers: AES-Twofish, AES-Twofish-Serpent, Serpent-AES, Serpent-Twofish-AES, Twofish-Serpent, Camellia-Kuznyechik, Camellia-Serpent, Kuznyechik-AES, Kuznyechik-Serpent-Camellia, Kuznyechik-Twofish
  • Hash functions: SHA-512, SHA-256, Whirlpool, Streebog-512, BLAKE2s
  • Deprecated hash function: RIPEMD160
  • Argon2 key derivation

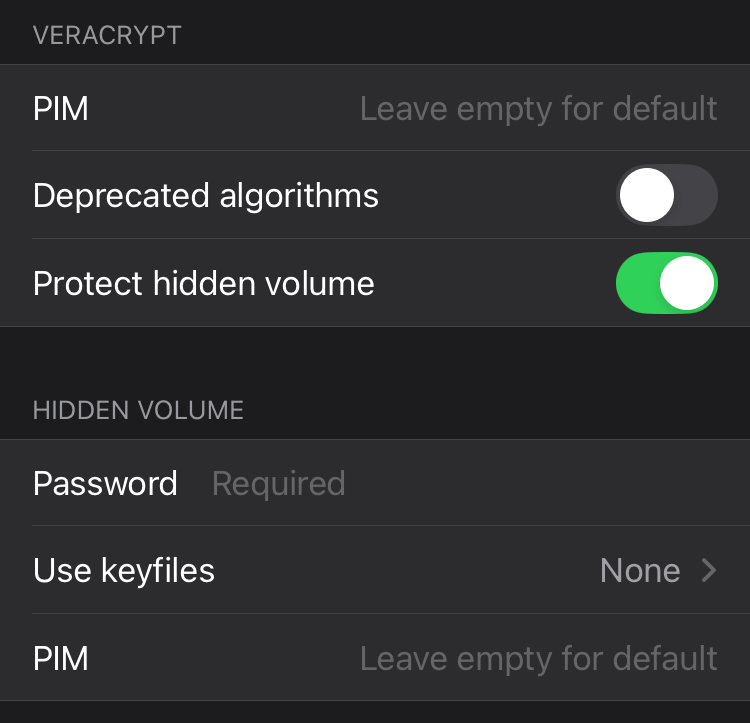

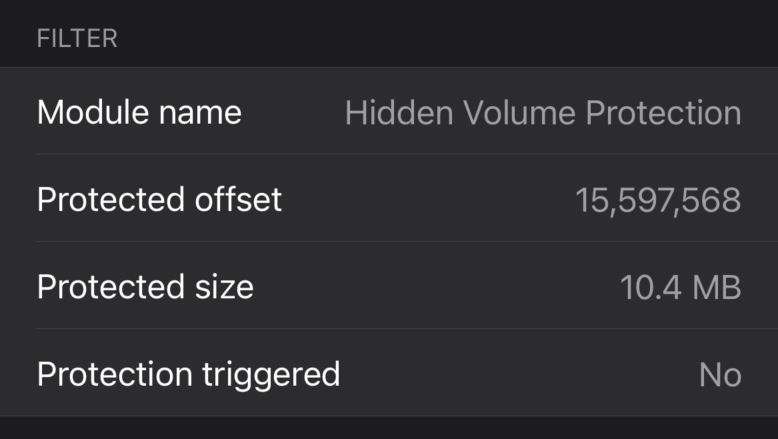

  • Hidden volumes
  • Keyfiles
  • PIM (Personal Iterations Multiplier)

The PIM option is available under the advanced options, just tap on "Show advanced options" when mounting a disk to specify the PIM value.

Note that if you store your VeraCrypt images inside a folder which is synchronized to a cloud storage service like Dropbox or Box, you probably want to turn the VeraCrypt option "Preserve modification timestamp of file containers" off to allow the cloud storage agent to correctly detect changes to your VeraCrypt containers after unmount. Otherwise your VeraCrypt container will not be correctly synchronized to your cloud storage service.

Due to VeraCrypt's high number of hash algorithm iterations for key derivation, Disk Decipher will not try to detect the VeraCrypt disk image format for containers having a file extension registered to other disk formats (.tc, .vol and .dmg). To enable VeraCrypt disk image format detection, use VeraCrypt's default extension (.hc), an unrelated extension, or no extension at all, for your VeraCrypt container file.

Argon2

Argon2 key derivation support has not yet been released as the official VeraCrypt distribution has not yet finalized the implementation details (currently in beta). To maintain full compatibility, Disk Decipher will release Argon2 key derivation support once VeraCrypt has a GA release containing Argon2.

On iOS and visionOS, Argon2 support will be available in the main Disk Decipher app, not in the File Provider, as iOS and visionOS limit the File Provider to 20 MB. This limitation does not apply to macOS.

RIPEMD-160 hash deprecated

Following the official VeraCrypt distribution, the RIPEMD-160 hash function has been deprecated. Unlike VeraCrypt, we have not removed this hash from Disk Decipher as it is difficult/impossible to download a previous app version from the App Store.
To mount a VeraCrypt container that uses the deprecated RIPEMD-160 hash function, expand the Advanced mount options and enable the "Deprecated algorithms" option.
It is recommended to migrate such containers by creating a new container, selecting all content of your current container and moving it to the new one.

TrueCrypt

Disk Decipher supports TrueCrypt containers created by TrueCrypt 6.0 and later (header version 4 and 5). Almost all TrueCrypt features are supported:

  • Operating mode: XTS
  • Ciphers: AES-256, Serpent, Twofish
  • Cascade ciphers: AES-Twofish, AES-Twofish-Serpent, Serpent-AES, Serpent-Twofish-AES, Twofish-Serpent
  • Hash functions: RIPEMD160, SHA-512, Whirlpool
  • Hidden volumes
  • Keyfiles

Note that if you store your TrueCrypt images inside a folder which is synchronized to a cloud storage service like Dropbox or Box, you probably want to turn the TrueCrypt option "Preserve modification timestamp of file containers" off to allow the cloud storage agent to correctly detect changes to your TrueCrypt containers after unmount. Otherwise your TrueCrypt container will not be correctly synchronized to your cloud storage service.

FreeOTFE

Disk Decipher supports FreeOTFE volumes with version 3 and 4. The most common FreeOTFE features are supported:

  • Operating modes: XTS, CBC
  • Ciphers: AES-256, Serpent, Twofish, Blowfish-448
  • Hash functions: RIPEMD160, SHA-512, Whirlpool
  • Custom key iterations and salt length

Other advanced FreeOTFE features are currently not supported, like keyfiles and hidden volumes. If you would like support for such a feature added to Disk Decipher, please let me know.

LUKS

Disk Decipher supports LUKS volumes with version 1 and 2. The most common LUKS features are supported:

  • Operating modes: XTS
  • Ciphers: AES-256, Serpent, Twofish
  • Hash functions: SHA1, SHA-256, SHA-512, RIPEMD160
  • Sector size: 512, 1024, 2048 or 4096 bytes
  • Keyfile

To create a LUKS volume compatible with the above features, use commands like this on a Linux system:

# dd if=/dev/zero of=test.vol bs=1024 count=32768
# cryptsetup --type luks2 --cipher aes-xts-plain64 --key-size 512 --sector-size 512 luksFormat test.vol
# cryptsetup luksOpen test.vol test
# mke2fs -t ext4 /dev/mapper/test
# mount /dev/mapper/test /mnt
...
# umount /mnt
# cryptsetup luksClose test

Please note that LUKS2 uses the first 16 MB of the container as header, so you need to provide a container file larger than 16 MB. The example container above has size 32 MB resulting in approx. 15 MB free space inside the filesystem.

If you need support for other LUKS features (like CBC with ESSIV), please let me know.

Disk Decipher supports both PBKDF2 and Argon2 key derivation functions for LUKS2. Please note that Argon2 usually requires a large amount of memory (on purpose), which may prevent mounting your disk inside the iOS File Provider, since iOS limits the iOS File Provider to 15 MB of RAM.

Apple Disk Image

Version 3.3.0 adds support for encrypted DMG files. The support covers

  • Version 2 encrypted DMG (the default since OS X 10.5)
  • Both AES-128 and AES-256 ciphers (all options offered by OS X)
  • Password protected

You can easily create a new container on macOS by using Disk Utility. Just select File -> New Image -> Blank Image and use settings like:

Disk Utility

Do you prefer the commandline?

$ man hdiutil
$ hdiutil create -size 100m -layout NONE -fs FAT32 -encryption AES-256 -volname "MyLabel" test1.dmg
$ hdiutil create -size 25m -layout NONE -fs APFS -encryption AES-256 -volname "MyLabel" test2.dmg
$ hdiutil create -size 25m -layout NONE -fs ExFAT -encryption AES-256 -volname "MyLabel" test3.dmg

Finder will display the container with name "MyLabel" when mounting the container on macOS.

Compression

Versie 3.14.1 adds support for compressed DMG (i.e. both encrypted and compressed DMG).

These containers are readonly by design. The compression can greatly reduce the disk image size depending on the type of files stored inside the container.

The following compression algorithms are currently supported

  • zlib
  • LZFSE
  • LZMA

To create a compressed DMG you can use Disk Utility on macOS (File - New Image - From Folder), or a command similar to these examples in Terminal

# zlib
$ hdiutil create -srcfolder ~/Documents/test -format UDZO -encryption AES-256 test_zlib.dmg

# LZFSE
$ hdiutil create -srcfolder ~/Documents/test -format ULFO -encryption AES-256 test_lzfse.dmg

# LZMA
$ hdiutil create -srcfolder ~/Documents/test -format ULMO -encryption AES-256 test_lzma.dmg

ProxyCrypt

Version 6.1.5 introduces support for the ProxyCrypt disk image format. ProxyCrypt is a niche format for advanced users.

On introduction, Disk Decipher supports disk images created with default options. Support for non-default options will gradually be added in updates following the introduction.

Currently supported:

  • Volume format version 2
  • Ciphers: AES-256, Serpent, SHACAL-2
  • Cascaded ciphers
  • Hash functions: Whirlpool, Keccak-512
  • Default Scrypt parameters: 128, 4

Not yet supported:

  • Keyfiles
  • Scrypt tuning

If you need a specific option, do let me know so I can prioritize which options will be available first.

File extension

While options are being added, it is required to use the .vol file extension on the disk image to trigger the ProxyCrypt mount flow. This will be relaxed in a future update.

SHACAL-2

Disk images encrypted with SHACAL-2 are mounted readonly. Some encryption export/import declarations must be completed before Disk Decipher is allowed to enable write support (encrypt data) for SHACAL-2.
If you need ProxyCrypt write support now, use AES-256 or Serpent (or a cascade of these ciphers).

To create a new volume, use a command like

ProxyCrypt.exe X: -f test.vol -c 10M

To unmount

aim_ll.exe -D -m X:

and remount

ProxyCrypt.exe -f test.vol
